This kit is intended to specifically convert the Dacor model# HDPR36S/NG range from Natural Gas to Propane (LP). This is a 36″ range with fired top side burners and a single electric oven below. These units have extreme precision specialty burners which use two orifices each to tailor the cook flame on extra low for cooking delicate sauces or simmering, while the other orifice is used for high intensity heated cooking. There are 3 distinctly sized burners (2 of each type) with a staggered array on this unit and that required 6 distinct types of precision machined orifices, such as the ones in this kit. The propane output pressure at the regulator is rated at 10″ W.C., while the Natural Gas setting on this range is rated at 5″W.C.

It is usually necessary to convert the regulator as part of the conversion. Other manual adjustments might be necessary, so check your factory instruction manual for details. FOB origin.

The Dacor HCT365GS cooktop has 5 burners that produce 9,001 BTU, 11,000 BTU, 12,000 BTU and 18,000 BTU. The center burner is a double burner that produces an ultra low simmer flame. These brass orifices are a replacement for appliances that use male threaded orifices. This cooktop comes with a regulator that is set for 10″ WC on its propane (LP) setting. Many cooktops, free standing stoves, bar-b-ques, and rangetops use these types of orifices and they will retrofit a number of other units which usually feature a sealed burner design.

This set includes 6 orifices for a stove with 4 single burners and a double burner (the center one). Many cooktops, rangetops and free standing stoves usually come with a dual gas regulator that can be converted between natural gas and propane. Other manual adjustments might be necessary, so check your factory instruction manual details. No other hardware parts should be required to complete the conversion if your unit uses a dual gas regulator. FOB origin.

This kit is intended to specifically convert the Dacor model# DOPA18M9CSM/KD range from Propane (LP) to Natural Gas. This is a 36″ range with 6 fired top side burners and a single electric oven below. These units have extreme precision specialty burners which use two ultra precision orifices each on 5 burners and 3 for a single burner to tailor the cook flame on extra low for cooking delicate sauces or simmering, while the other orifice(s) is/are used for high intensity heated cooking. There are 4 distinctly sized burners (3 of one type, and 3 distinctly defferent burners) with a staggered array on this unit and that required several distinct types of precision machined orifices like the ones in this kit. The propane output pressure at the regulator is rated at 10″ W.C., while the Natural Gas setting on this range is rated at 5″W.C.

It is usually necessary to convert the regulator as part of the conversion. Other manual adjustments might be necessary, so check your factory instruction manual for details. FOB origin.

This is a kit to convert the Dacor ERD30S06CH range from Natural Gas to Propane (LP). This range incorporates orifices for its 4 burners and an additional orifice for the broiler. The low heat function uses jets that produce a fuel stream that enables an ultra low BTU rating that is low enough to roll delicate gourmet sauces on all 4 top side burners. The regulator is convertible, so Natural Gas is rated at 4″ WC and LP is rated at 10″ WC.

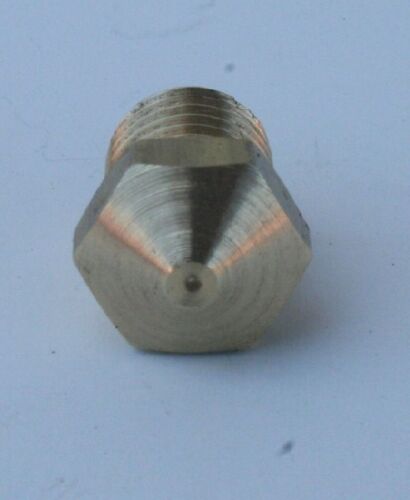

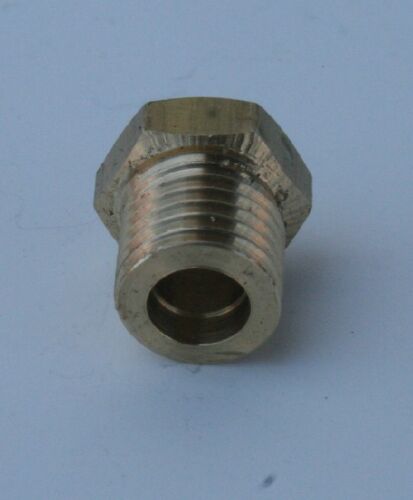

These brass orifices and jets are a replacement for appliances that use male threaded orifices.

This set includes 5 orifices for a range with up to 4 topside burners and a main oven broiler. The low heat jets must also be swapped with the 4 supplied jets to enable an ultra low simmer heat. Other manual adjustments might be necessary, so check your factory instruction manual details. No other hardware parts should be required to complete the conversion if your unit uses a dual gas regulator. FOB origin.

This is a kit to convert the Dacor ESG486 and Dacor ESG 366 from Natural Gas to Propane (LP). This range incorporates orifices for its 6 topside burners. The low heat function on the two largest burners use orifices that produce an ultra low BTU rating to enable delicate gourmet sauces to cook on low heat indefinitely. The regulator is convertible between Natural Gas is rated at 5″ WC and LP is rated at 10″ WC.

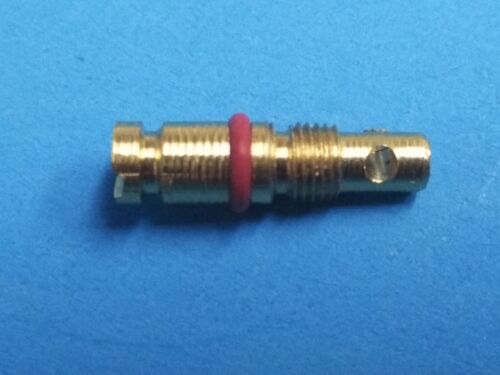

These brass orifices are a replacement for appliances that use male threaded orifices. The larger orifices are used for the top side orifices and the broiler, and the special orifice jets that fit into the burner control knob assembly. The top side orifices produce 15,000 BTU for the upper burners and the low heat is achieved through the bypass needle (located in the main control knob body).

Note: If you’re converting one of these ranges for propane used at high altitude, please contact seller.

This set includes 6 orifices and 6 bypass needles (jets) for a cooktop with 6 burners. Other manual adjustments might be necessary, so check your factory instruction manual details. No other hardware parts should be required to complete the conversion if your unit uses a dual gas regulator. FOB origin.

This is a kit to convert the Dacor ERSD48 range from Propane (LP) to Natural Gas. This range incorporates orifices for its 6 topside burners and the broiler, while the ovens bake features are electric. The low heat function uses jets that produce a fuel stream that enables an ultra low BTU rating that is low enough to roll delicate gourmet sauces on all 6 top side burners. The regulator is convertible, so Natural Gas is rated at 4″ WC and LP is rated at 10″ WC.

These brass orifices and jets are a replacement for appliances that use male threaded orifices.

This set includes 7 orifices for a range with up to 6 burners and a ceramic broiler. The 6 jets must also be swapped with the supplied jets to enable an ultra low simmer heat. Other manual adjustments might be necessary, so check your factory instruction manual details. No other hardware parts should be required to complete the conversion if your unit uses a dual gas regulator. FOB origin.
