This kit is intended to specifically convert the Dacor model# HDPR36S/NG range from Propane (LP) to natural gas. This is a 36″ range with fired top side burners and a single electric oven below. These units have extreme precision specialty burners which use two orifices each to tailor the cook flame on extra low for cooking delicate sauces or simmering, while the other orifice is used for high intensity heated cooking. There are 3 distinctly sized burners (2 of each type) with a staggered array on this unit and that required 6 distinct types of precision machined orifices, such as the ones in this kit. The propane output pressure at the regulator is rated at 10″ W.C., while the Natural Gas setting on this range is rated at 5″W.C.

It is usually necessary to convert the regulator as part of the conversion. Other manual adjustments might be necessary, so check your factory instruction manual for details. FOB origin.

This kit is intended to specifically convert the Dacor model# HDPR36S/NG range from Natural Gas to Propane (LP). This is a 36″ range with fired top side burners and a single electric oven below. These units have extreme precision specialty burners which use two orifices each to tailor the cook flame on extra low for cooking delicate sauces or simmering, while the other orifice is used for high intensity heated cooking. There are 3 distinctly sized burners (2 of each type) with a staggered array on this unit and that required 6 distinct types of precision machined orifices, such as the ones in this kit. The propane output pressure at the regulator is rated at 10″ W.C., while the Natural Gas setting on this range is rated at 5″W.C.

It is usually necessary to convert the regulator as part of the conversion. Other manual adjustments might be necessary, so check your factory instruction manual for details. FOB origin.

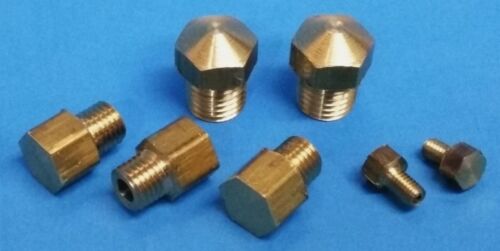

This is a kit to convert the Dacor PGM365-1S from Propane (LP) to Natural Gas. This range incorporates orifices for its 5 topside burners. The low heat function on the two largest burners use orifices that produce an ultra low BTU rating to enable delicate gourmet sauces to cook on low heat indefinitely. The regulator is convertible, so Natural Gas is rated at 5″ WC and LP is rated at 10″ WC.

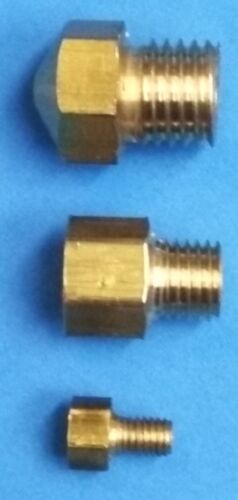

These brass orifices are a replacement for appliances that use male threaded orifices. The large teepee shaped orifices handle large burner (18,000 BTU – left front dual burner). The spuds consist of 2 orifces for the small 9,500 BTU burners – (left rear, right rear), and one for the medium 12,500 BTU burner (center rear).

This set includes 7 orifices for a cooktop with 5 burners. Other manual adjustments might be necessary, so check your factory instruction manual details. No other hardware parts should be required to complete the conversion if your unit uses a dual gas regulator. FOB origin.

This is a kit to convert the Dacor PGM365-1S from Natural Gas to Propane (LP). This range incorporates orifices for its 5 topside burners. The low heat function on the two largest burners use orifices that produce an ultra low BTU rating to enable delicate gourmet sauces to cook on low heat indefinitely. The regulator is convertible, so Natural Gas is rated at 5″ WC and LP is rated at 10″ WC.

These brass orifices are a replacement for appliances that use male threaded orifices. The large teepee shaped orifices are for the 12,500 BTU dual burner, front right, and teepee shaped orifices to handle the large burner (18,000 BTU – front left dual burner). The spuds consist of 2 orifces for the small 9,500 BTU burners – left rear, right rear, and a medium 12,500 BTU burner (center rear). There are also two ultra low heat orifices that enable an ultra low heat flame on two burners.

This set includes 7 orifices for a cooktop with 5 burners. Other manual adjustments might be necessary, so check your factory instruction manual details. No other hardware parts should be required to complete the conversion if your unit uses a dual gas regulator. FOB origin.

These brass orifices are a specific replacement to convert the Dacor SGM364 range with 4 burner from Propane (LP) to NATURAL GAS. These brass orifices are a specific replacement for a propane powered converted Dacor SGM364 range with 4 burners. Outside diameter of the threads is 0.316 at inches, so measure your orifices carefully before ordering. Many cooktops, free standing stoves, bar-b-ques, and rangetops use these types of orifices and they will retrofit a number of other units which usually feature a sealed burner design.

This set includes 4 orifices for a stove with up to 4 burners. Many cooktops, rangetops and free standing stoves usually come with a dual gas regulator that can be converted between natural gas and propane. Other manual adjustments might be necessary, so check your factory instruction manual details. No other hardware parts should be required to complete the conversion if your unit uses the dual gas regulator supplied with this stove.

The regulator set for NATURAL GAS on this unit is rated at 4″WC. These orifices will support two propane 11,000 BTU burners and two propane 8,000 BTU burners. International buyers, please inquire about international shipping rates before ordering. FOB origin.

These brass orifices are a specific replacement to convert NATURAL GAS powered Dacor SGM364 range with 4 burner to operate on Propane (LP).Many cooktops, free standing stoves, bar-b-ques, and rangetops use these types of orifices and they will retrofit a number of other units which usually feature a sealed burner design.

This set includes 4 orifices for a stove with up to 4 burners. Many cooktops, rangetops and free standing stoves usually come with a dual gas regulator that can be converted between natural gas and propane. Other manual adjustments might be necessary, so check your factory instruction manual details. No other hardware parts should be required to complete the conversion if your unit uses the dual gas regulator supplied with this stove.

These orifices will support two PROPANE 11,000 BTU burners and two PROPANE 8,000 BTU burners. International buyers, please inquire about international shipping rates before ordering. FOB origin.

These brass orifices are a specific replacement for the Dacor SGM464EM range with 4 burners to convert this unit from Natural Gas to Propane (LP).Many cooktops, free standing stoves, bar-b-ques, and rangetops use these types of orifices and they will retrofit a number of other units which usually feature a sealed burner design.

This set includes 4 orifices for a stove with up to 4 burners. Many cooktops, rangetops and free standing stoves usually come with a dual gas regulator that can be converted between natural gas and propane. Other manual adjustments might be necessary, so check your factory instruction manual details. No other hardware parts should be required to complete the conversion if your unit uses the dual gas regulator supplied with this stove.

These orifices will support two 12,500 BTU burners and two 8,500 BTU burners. International buyers, please inquire about international shipping rates before ordering. FOB origin.

These are orifices specifically to convert a Dacor Model #SGM466 cooktop to natural gas. The kit is converting burners using the stock regulator rated set for natural gas rated at 4″ W.C. Many cooktops, free standing stoves, bar-b-ques, and rangetops use these types of orifices and they will retrofit a number of other units which usually feature a sealed burner design.

This set includes 6 orifices for a stove with up to 6 burners. Many cooktops, rangetops and free standing stoves usually come with a dual gas regulator that can be converted between natural gas and propane. Other manual adjustments might be necessary, so check your factory instruction manual details. No other hardware parts should be required to complete the conversion if your unit uses a dual gas regulator.

International buyers, please inquire about international shipping rates before ordering. FOB origin.
